How to Fix a Ribbon Cable of a damaged ribbon cable disrupting your device’s performance? Whether it’s inside your computer, a car’s dashboard, or a household gadget, a broken ribbon cable can feel like a dead end.
But here’s the good news: you don’t always need to replace the entire cable or device. With a few simple steps and some basic tools, you can fix your ribbon cable and bring your electronics back to life. In this guide, you’ll discover easy-to-follow techniques that save you time and money, even if you’ve never done it before.
Ready to take control and repair your ribbon cable like a pro? Let’s get started.
Tools And Materials
Fixing a ribbon cable requires specific tools and materials. Using the right items makes the repair easier and more successful. Prepare all necessary tools and materials before starting your work. This preparation helps avoid delays and mistakes.
Essential Tools For Repair
You need a few basic tools for ribbon cable repair. A precision knife helps remove damaged sections carefully. Tweezers assist in handling small cable parts. A magnifying glass improves the visibility of tiny wires. A multimeter is useful to check cable continuity. A small flathead screwdriver helps in opening connectors. These tools make the repair process smooth and accurate.
Choosing The Right Adhesives
Select adhesives that work well with flexible electronics. Conductive glue is ideal for restoring electrical connections. It contains tiny silver particles that carry current. Non-conductive glue can secure the cable physically without affecting signals. Avoid using regular superglue alone as it may block conductivity. Always apply adhesive sparingly to avoid damaging the cable.

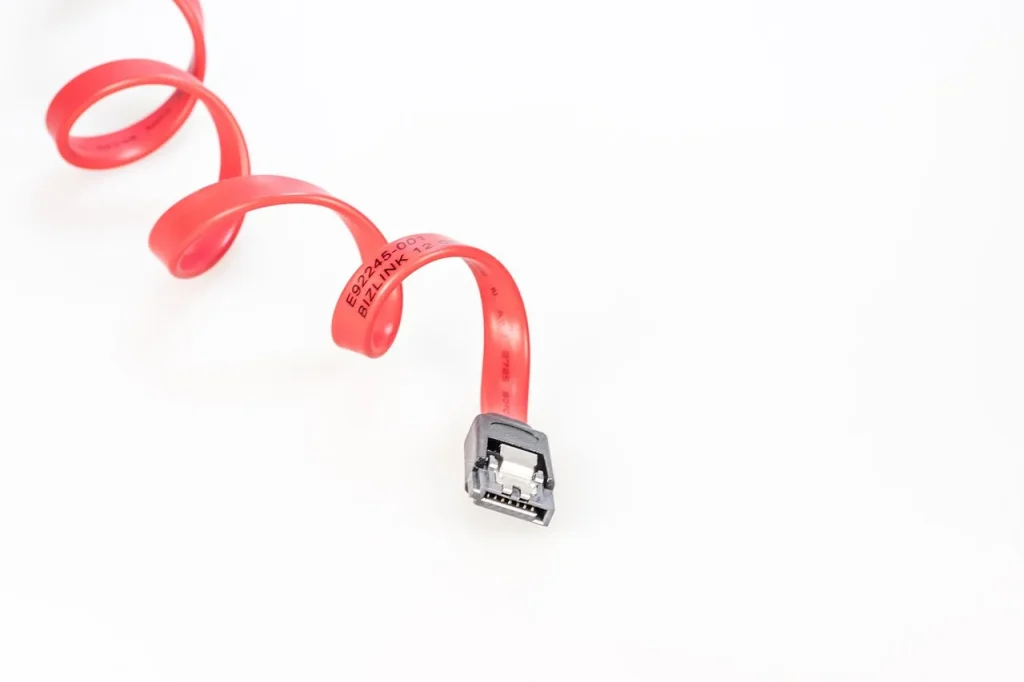

Safety Equipment
Wear safety glasses to protect your eyes from small debris. Use gloves to keep your hands clean and safe. Work in a well-lit area to reduce eye strain. Keep your workspace organised to avoid accidents. These safety measures help you repair the ribbon cable safely and efficiently.
Identifying Damage
Identifying damage in a ribbon cable is the first step in fixing it. Careful inspection helps find the exact problem. This saves time and avoids unnecessary repairs. You can easily spot issues by knowing what to look for. Understanding the type of damage helps decide the next action.
Common Ribbon Cable Issues
Ribbon cables often suffer from cuts, tears, and worn-out sections. Bending the cable too much causes cracks in the wires. Dirt and corrosion may appear on the contacts. Sometimes, the cable separates from the connectors. Heat or sharp objects can damage the plastic layer.
Spotting Broken Conductors
Look closely for breaks in the thin metal lines inside the cable. Use a magnifying glass for a better view. Broken conductors stop electric signals from passing through. Gently flex the cable while watching for cracks or splits. A multimeter can check continuity across the conductors.
Assessing The Repairability
Small cuts or tears can often be repaired with care. Large breaks or missing sections usually need a full cable replacement. Check if damaged parts are reachable and safe to fix. Consider the cable’s age and cost before deciding to repair. Proper tools and materials increase the chance of success.
Preparing The Cable
Preparing the ribbon cable is the first step to a successful repair. This stage involves careful cleaning and handling to ensure the cable is ready for fixing. Taking time here prevents future problems and improves the connection quality.
Cleaning The Damaged Area
Start by removing dirt and dust from the damaged section. Use a soft brush or a lint-free cloth. Avoid using water or harsh chemicals that can worsen the damage. A clean surface helps the repair materials stick better.
How to Fix a Ribbon Cable
Next, gently strip away the plastic coating around the damaged wires. Use a precision knife or wire stripper for accuracy. Be careful not to cut the copper conductors inside. Exposing the wires fully allows for proper connection.
Aligning The Conductors
After stripping, carefully align the copper conductors side by side. Make sure each wire matches its partner on the other cable end. Proper alignment ensures the electrical signals pass correctly. This step is key to restoring function.
Repair Techniques
Repairing a ribbon cable requires careful techniques to restore functionality. The process involves dealing with delicate materials and precise connections. Using the right method improves the chance of success and extends the cable’s life. Below are three effective repair techniques to fix common ribbon cable issues.
Splicing Broken Tracks
Splicing broken tracks means reconnecting the damaged wires inside the ribbon cable. First, carefully strip the insulation from both ends of the break. Align the exposed wires side by side. Use a thin wire or conductive tape to join each corresponding track. Secure the splice with electrical tape or heat shrink tubing. This method works best for small breaks and simple repairs.
Using Conductive Glue
Conductive glue restores electrical paths without soldering. Clean the damaged area to remove dirt and oils. Apply a small amount of conductive glue over the broken tracks using a toothpick. Let it dry fully before testing the cable. This glue contains tiny metal particles that carry current. It is useful for flexible cables and reduces heat damage risks.
Soldering Delicate Connections
Soldering gives a strong, lasting repair for ribbon cables with exposed wires. Use a fine-tip soldering iron and thin solder wire. Heat the damaged track gently and add solder to reconnect the wires. Avoid overheating to prevent melting the insulation. Hold the cable steady with tweezers or a clamp. After soldering, cover the joint with insulating tape to protect it.
Reinforcing The Repair
Reinforcing the repair of a ribbon cable is key to making it last. A well-secured fix prevents further damage and ensures stable connections. Use simple methods to protect the cable from stress and wear. This section covers easy ways to strengthen your repair.
Applying Protective Coatings
Protective coatings shield the repaired area from moisture and dust. Use clear nail polish or liquid electrical tape for small fixes. Apply a thin layer over the repair and let it dry. This adds a flexible barrier that keeps the repair safe.
Using Heat Shrink Tubing
Heat-shrink tubing fits snugly over the damaged section. Cut a piece slightly longer than the repair. Slide it over the cable, then heat it with a heat gun or hair dryer. The tubing shrinks tightly, holding the repair in place and adding insulation.
Securing With Tape Or Clamps
Use electrical tape to wrap the repair for extra support. Wrap firmly but avoid too much bulk. For stronger holds, small clamps or cable ties work well. They keep the cable stable and reduce movement that can cause damage again.
Testing The Repair
Testing the repair is a crucial step after fixing a ribbon cable. It ensures the cable works correctly and safely. Testing helps catch any mistakes early. This saves time and prevents further damage. Follow these simple methods to test your repair effectively.
Continuity Testing With A Multimeter
Use a multimeter to check continuity. Set the multimeter to the continuity mode. Place one probe on one end of the cable trace. Put the other probe on the matching end. A beep or low resistance means the trace is good. No beep means a broken connection. Test each wire in the ribbon cable this way. This step confirms that the repair restored electrical paths.
Functional Testing In Device
Connect the ribbon cable back to the device. Power on the device carefully. Observe if the device works as expected. Check for any glitches or missing functions. A fully working device means the repair is successful. If the device fails, further testing is needed. Functional testing shows the real-world performance of the cable.
Troubleshooting Failed Repairs
If the repair fails, do not panic. Recheck the continuity on all wires again. Look for cold solder joints or loose connections. Inspect the cable for hidden damage or weak spots. Clean contacts and reapply conductive glue if used. Replace the cable if the damage is too severe. Troubleshooting fixes small errors before replacing parts.
Preventing Future Damage
Preventing future damage to ribbon cables is key to extending their lifespan. Careful handling and proper installation reduce wear and tear. Small habits make a big difference in avoiding costly repairs.
Following simple steps keeps ribbon cables in good shape. Protecting cables ensures devices work smoothly for longer periods.
Proper Handling And Installation
Always hold ribbon cables by the edges. Avoid pulling on the cable itself. Gently insert connectors without forcing them. Secure cables firmly in place to stop movement. Use the right tools for installation tasks. Avoid using excessive pressure that can damage wires.
Avoiding Sharp Bends
Keep ribbon cables flat and smooth. Do not bend cables sharply or fold them. Sharp bends break internal wires easily. Make wide loops if a bend is needed. Keep cables away from tight spaces or edges. This prevents cracks and breaks over time.
Regular Inspection Tips
Check ribbon cables regularly for signs of wear. Look for cracks, splits, or discolouration. Test connectors to ensure they fit well. Replace cables that show visible damage. Clean connectors gently to remove dust. Early detection stops small problems from growing.
Frequently Asked Questions
How to Fix a Ribbon Cable
Yes, you can splice a ribbon cable by carefully aligning and soldering the conductors. Use conductive glue for better connections.
Can I Glue A Ribbon Cable?
Yes, you can glue a ribbon cable carefully using superglue for bonding and conductive glue to restore connections. Avoid excess glue to prevent damage.
Can You Use Superglue On Ribbon Cable?
You can use superglue to hold broken ribbon cable pieces together temporarily. Apply conducting glue to restore electrical connections for a proper fix.
How Do You Attach Ribbon Cables?
Align the ribbon cable with the connector carefully. Insert it straight and ensure the contacts face the right direction. Secure the cable by locking the connector latch or clamping it firmly. Verify the connection is tight to prevent signal loss or damage.
Conclusion
Fixing a ribbon cable takes patience and the right tools. Carefully clean and align the damaged area before repairing. Use conductive glue or solder for strong connections. Test the cable to ensure it works properly. Small tears can be fixed, but large damage may need replacement.
Follow safety steps to avoid further harm. With practice, you can extend your device’s life and save money. Keep your workspace organised and work slowly for the best results. Ribbon cable repair is doable with care and attention.
